Types of Elbows in Piping Systems

Types of Elbows in Piping Systems

Elbows are essential components in piping systems that enable fluid flow around corners, facilitate connections between different piping segments, and ensure efficient transport of liquids or gases from one point to another. In simple terms, an elbow is a curved fitting that redirects fluid flow in a piping system. Steel Elbows are available in various configurations and materials to suit different applications, ranging from standard plumbing installations to complex industrial processes.

Types of Elbow Pipe Fittings

Elbows come in a variety of types, each serving specific purposes and offering unique advantages. Here are some common types of elbows found in piping systems:

1. Standard Elbows

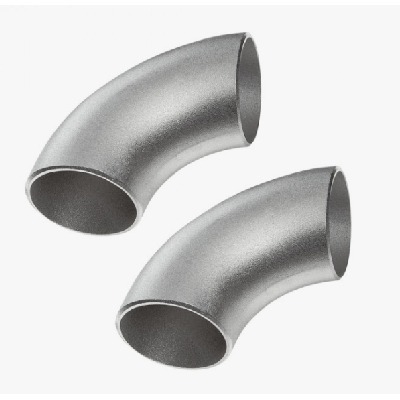

standard elbows

Standard elbows, also known as 90-degree elbows, are the most commonly used type of elbow. They create a 90-degree angle, making them ideal for routing fluid flow around right-angle turns. Standard elbows are available in different materials such as steel, copper, PVC, and more, catering to diverse application requirements.

2. Long Radius Elbows

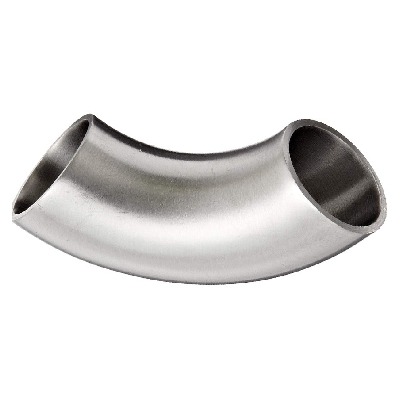

long radius elbows

Long-radius elbows feature a larger radius than standard elbows, resulting in smoother flow transitions and reduced pressure drops. These elbows are preferred in applications where fluid velocity and flow stability are critical, such as chemical processing plants and HVAC systems.

3. Short Radius Elbows

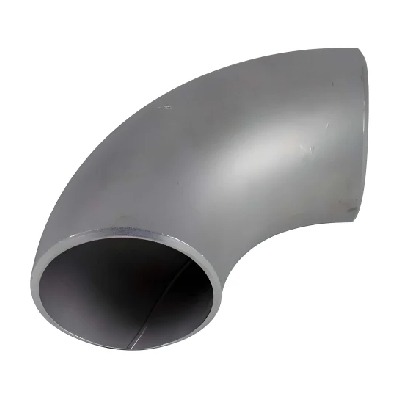

short radius elbows

Short-radius elbows have a smaller radius, making them more compact and suitable for tight spaces or situations requiring sharper turns. However, short-radius elbows may introduce higher pressure drops than long-radius elbows, affecting overall system efficiency.

4. Reducing Elbows

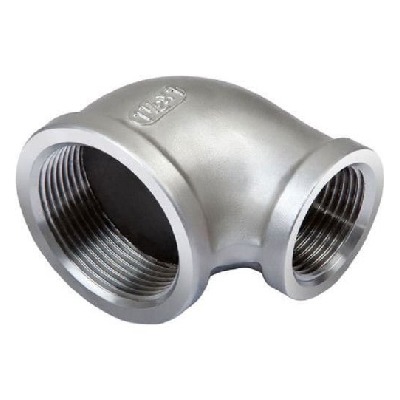

reducing elbows

Reducing elbows are designed to connect pipes of different diameters, facilitating smooth flow transition while accommodating varying pipe sizes within the same system. These elbows are instrumental in applications where changes in diameter are necessary to meet specific flow rates or space constraints.

5. Mitered Elbows

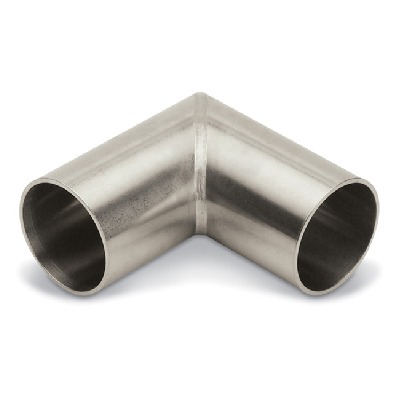

mitered elbows

Mitered elbows, or segmented elbows, are custom-fabricated fittings constructed from straight pipe sections cut at precise angles and welded together. This fabrication method allows for creating elbows with non-standard angles, offering flexibility in routing piping systems around obstacles or optimizing space utilization.

6. Threaded Elbows

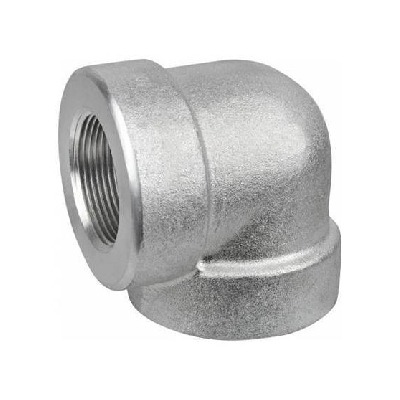

threaded elbows

Threaded elbows feature male or female threads on both ends, enabling easy installation and disassembly without welding. These elbows are commonly used in low-pressure applications or situations requiring frequent maintenance or adjustments.

7. Socket Weld Elbows

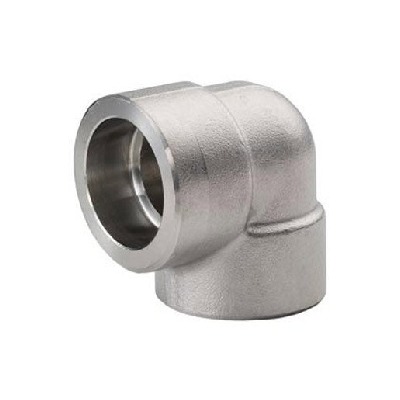

socket weld elbows

Socket weld elbows are designed for high-pressure and high-temperature applications. They feature a recessed socket on one end, into which the pipe is inserted and welded for a secure connection. Socket weld elbows provide excellent strength and leak resistance, making them suitable for demanding industrial environments.

Conclusion

In conclusion, elbows are integral components in piping systems, offering versatility and functionality in directing fluid flow and connecting piping segments. By understanding the various types of elbows available and their respective advantages, engineers and designers can make informed decisions when selecting fittings for their piping systems, ensuring optimal performance and efficiency.
